Universal 320*160mm
Universal 320*160mm size & module holes, multiple choices for cabinet.
Fully Flip Chip COB Technology
Fully Flip Chip COB Technology, no shadow "caterpillar"
Contrast Ratio 10000:1
Contrast Ratio 10000:1 and refresh rate 3840Hz
Matte surface
Non-reflective, higher contrast
Low voltage driving method
Low voltage driving method, low consumption of cold screen
COB VS MIP
More realistic and colorful display than MIP
High precision stitching
High precision stitching, micron tolerance and adjustable
moisture-proof
Anti-collision, moisture-proof, dustproof 4H surface hardness scrubbable, easy cleaning by water
UT - C 320 * 160 series Product Model 1.53 1.86 Pixel Pitch 1.5384mm 1.8604mm Module Resolution(dots) 208*104 172*86 Module Size 320*160*14.5mm 320*160*14.5mm Weight 0.5kg/PCS 0.49kg/PCS Brightness 600nit 600nit Max.Power Consumption 410W/m² 370W/m² Circuit Design Common Anode Circuit Common Anode Circuit Scan 52s 43s Receiving Card Nova MRV532(With Flash) Nova MRV532(With Flash) Power Supply Specification 4.5V 4.5V
COB

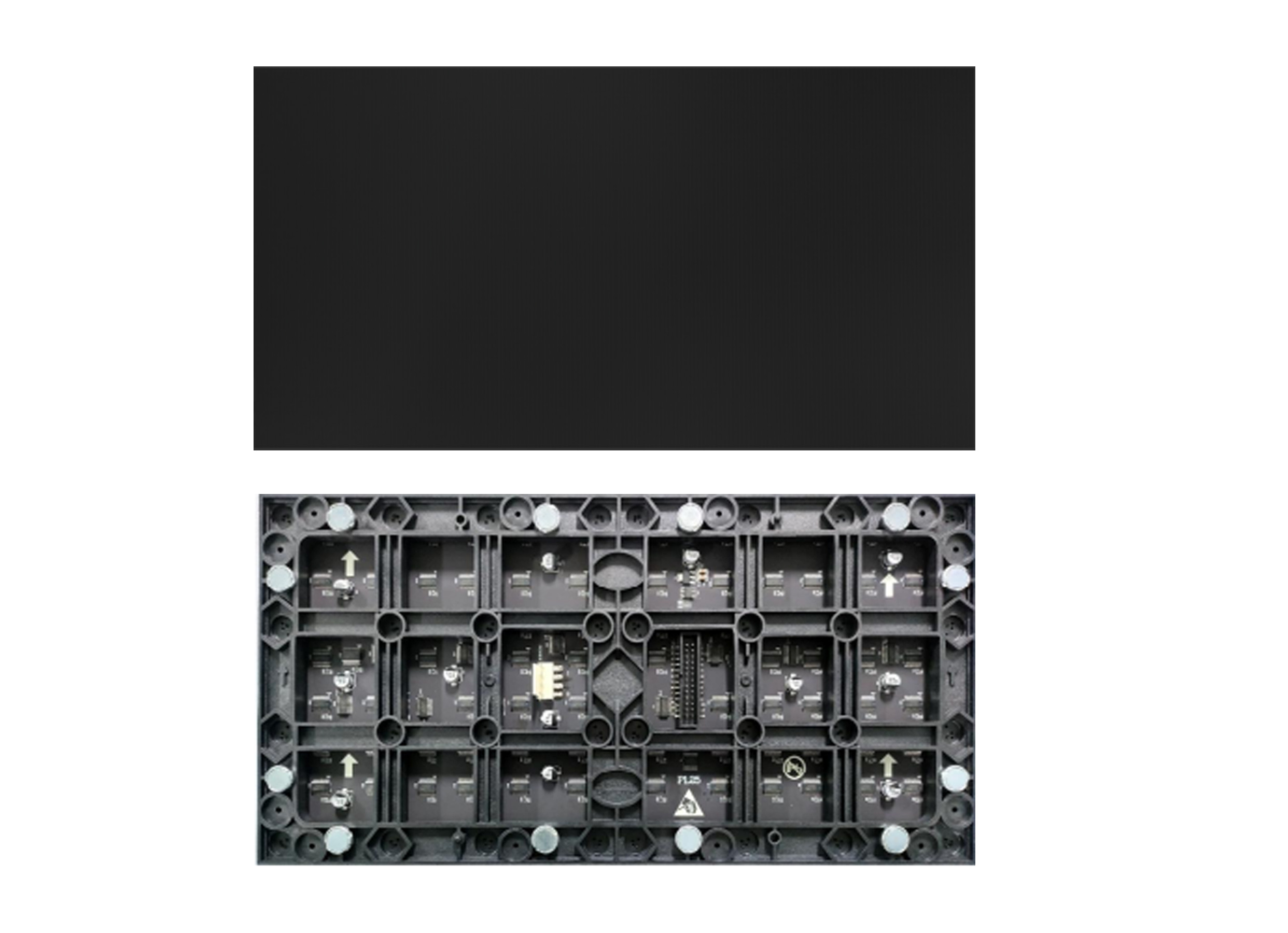

UT-C 320X160 series
Indoor fine pitch COB LED display
Classic Dimension: 640×480mm
Pixel Pitch: P1.25/ P1.53/ P1.86mm
Universal 320 x 160 size & module holes
COB channel modules to replace traditional SMD
Applications: Indoor HD Video Wall, Shopping Mall Advertising, etc.
