Mercury series

Outdoor Fine Pitch LED display

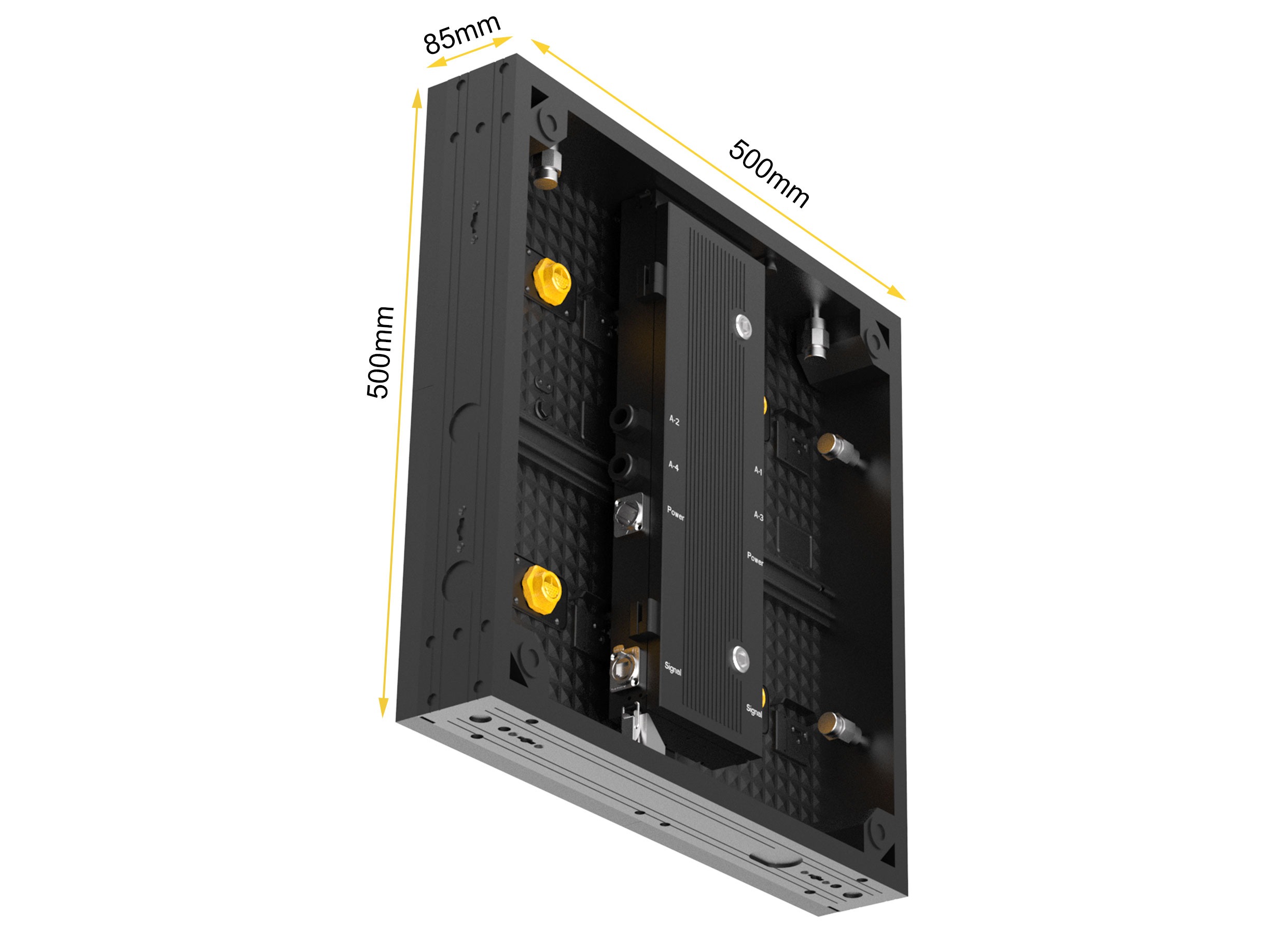

Classic Dimension: 500×500mm

Pixel Pitch: P2.5mm

Customized cabinet sizes

Total front & rear service

Applications: Commercial Street, Transportation System, Advertising Billboard, etc

CONTACT NOW
  • Full front service

    Full front service, wall paper installation

    Integrated design

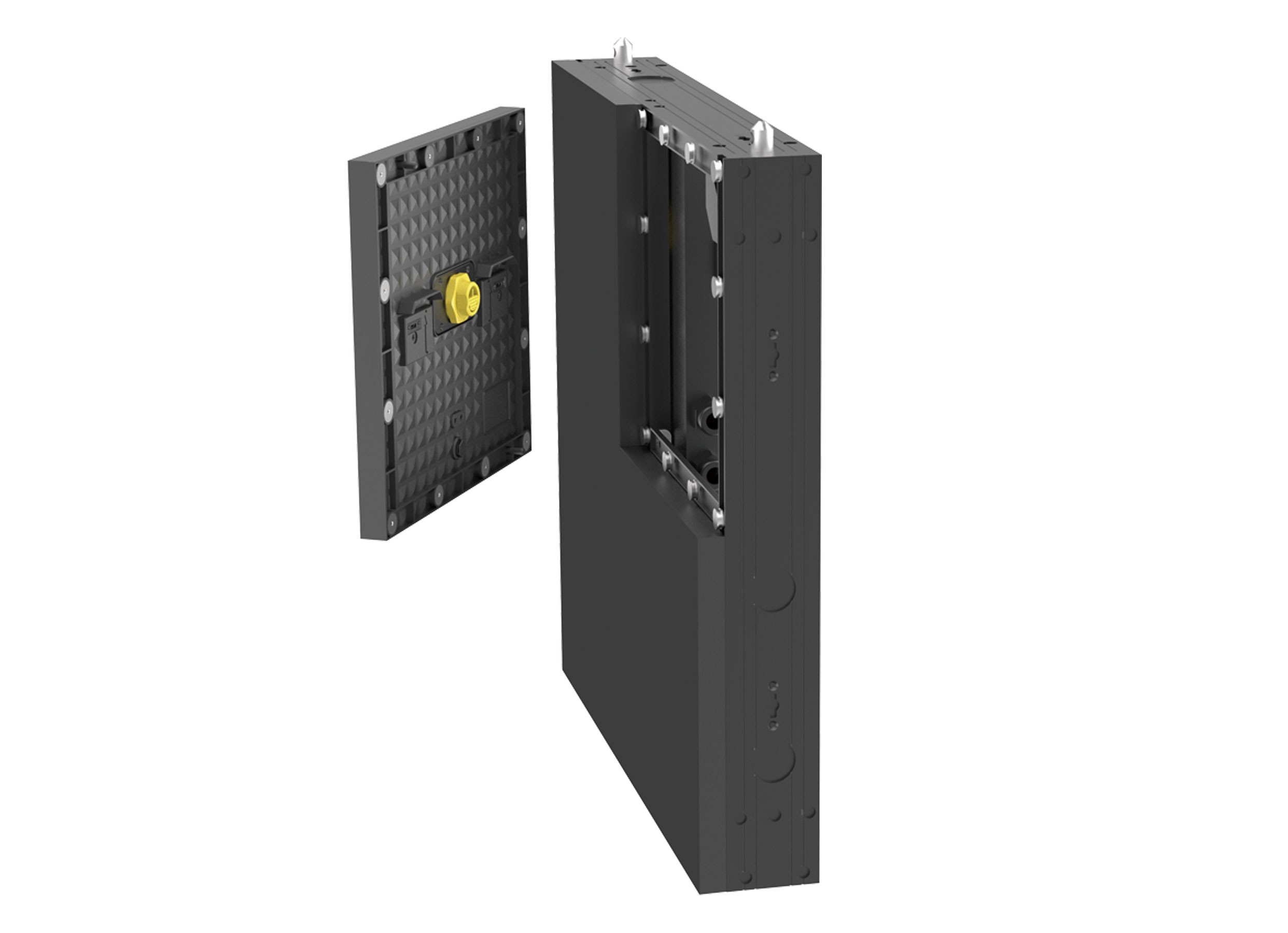

    Module+controller box modular design

    High contrast ratio

    High contrast ratio 6000:1

    High brightness

    Super high brightness 5500nits of outdoor fine pitch

    Resistant to high and low temperatures

    Withstand extreme weather of -20°C to 50°C

    Easy to customize different size

    Easy to customize different cabinet size in order to adapt to various screen size

    Customized sizes

    Aluminum profile cabinet, supports flexible cabinet size customization

  • Mercury Series - Outdoor Fine Pitch LED displays
    Pixel Pitch(mm)2.5mm
    Cabinet SizeW500*H1000*85MMW500*H500*85MM
    Pixel Density(dots/㎡)160000
    Brightness(cd/㎡)3000-5500cd adjustable
    LED LampOutdoor SMD1515
    Module Size250*250mm
    Module Resolution(dots)100*100
    Average Power Consumption(W/㎡)250W
    Average Power Consumption(W/㎡)720w
    Viewing Distance(m)≧2.5m
    Scan1/25 scan
    Product Weight(KG/㎡)36 kg40kg
    LED Driving MethodHigh Refresh Constant Current,ICND2165B/SM16380
    Module Thickness20mm
    Maintenance WayFront/Rear
    PackageModule/Cabinet Packed Alone
    Pixel Composition1R 1G 1B
    Operating Input Voltage(V)4.5-5V
    Contrast Ratio4000:1
    Gray Scale≥14bits
    Brightness AdjustmentManual 256 Levels
    Refresh Frame Frenquncy60HZ
    Refresh Rate3840HZ
    Ingress ProtectionIP65
    Transmission DistanceHSYV-5E≦130MMultimode Fiber≦500MSinglemode Fiber≦10KM
    Continuous Use Time>72h
    Life Span100,000h
    MTBF>10,000h
    Blind Spot Rate<0.01%
    Operating Temperature-20℃~+50℃(Customized below—20℃)
    Operating HumidityOutdoor 10%~85%
