Easy front access & light weight
Easy front access by simple tool, light weight 4kg/panel
High refresh rate & High brightness
Contract Ratio 10000:1 & Refresh Rate 3840 to 7680Hz
Support high brightness 1000nits indoor use
Dustproof, moisture-proof
Dustproof, moisture-proof, 4H surface hardness scrubbable
Multi-Level Calibration
Multi-level calibration technology eliminates mottling and color blocking issues at different gray levels, ensuring uniform and consistent display across all gray scales
Gray Scale Extension
Gray scale extension in creases the effective output bit depth, resultin gin smoother and more natural gradients, while revealing finer details in darker areas
Golden 16:9 ratio
Easily achieve 2k/ 4k /8k and widely used for All-in-one TV, COB poster etc
Multiple application scenarios
Multiple application scenarios, support internal arc installation
UT - COB series Product Model P0.62 P0.78 P0.9 P1.2 P1.5 P 1.8 Pixel Pitch 0.625mm 0.78mm 0.9375mm 1.25mm 1.56mm 1.875mm Maintenance Front Maintenance Cabinet Resolution(dots) 960*540 768*432 640*360 480*270 384*216 320*180 Cabinet Size 600mm×337.5mm×39.75mm Module Size 150*168.75mm 150*168.75mm 150*168.75mm 150*168.75mm 150*168.75mm 150*168.75mm Module QTY 8 Modules In One Cabinet Weight 4kg/panel Brightness 600nit 550nit Max.Power Consumption 92W/panel 85W/panel 75W/panel 70W/panel 70W/panel 65W/panel Scan 60s 48s 54s 60s 54s 40s Power Supply Specification 3.8V /30A Certificate 3C/CE/CB/FCC/ETL/ROHS/CQC
COB

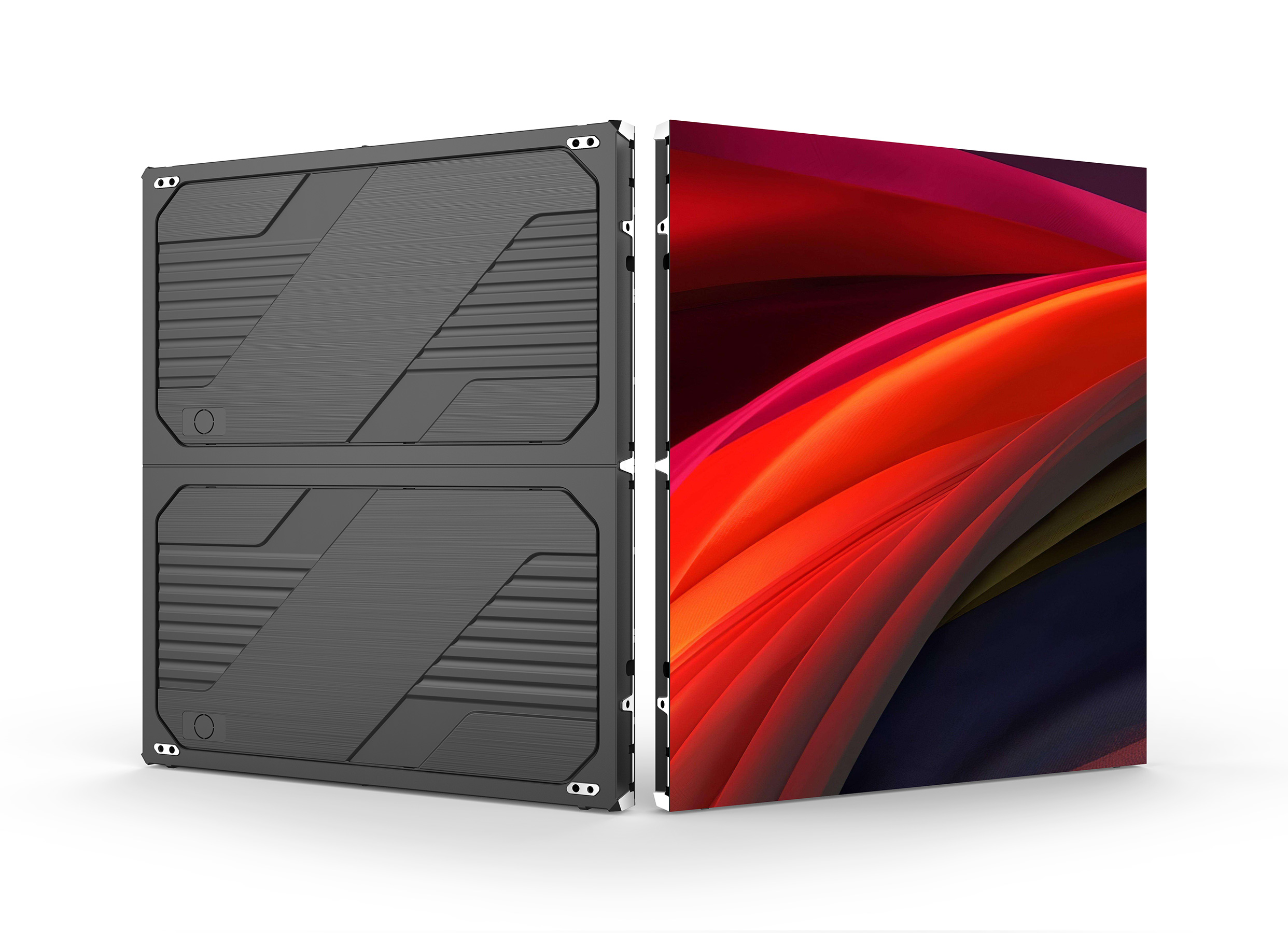

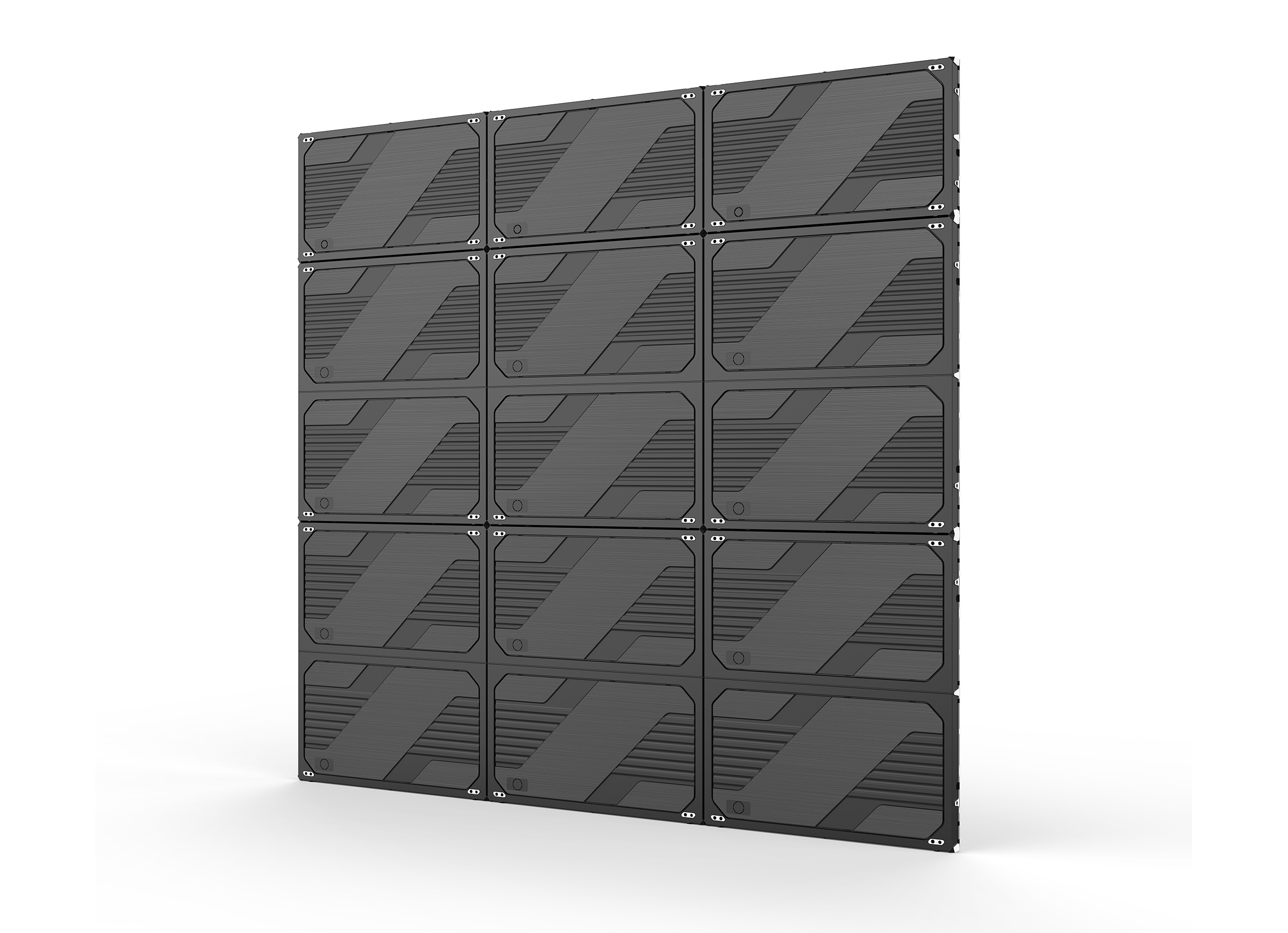

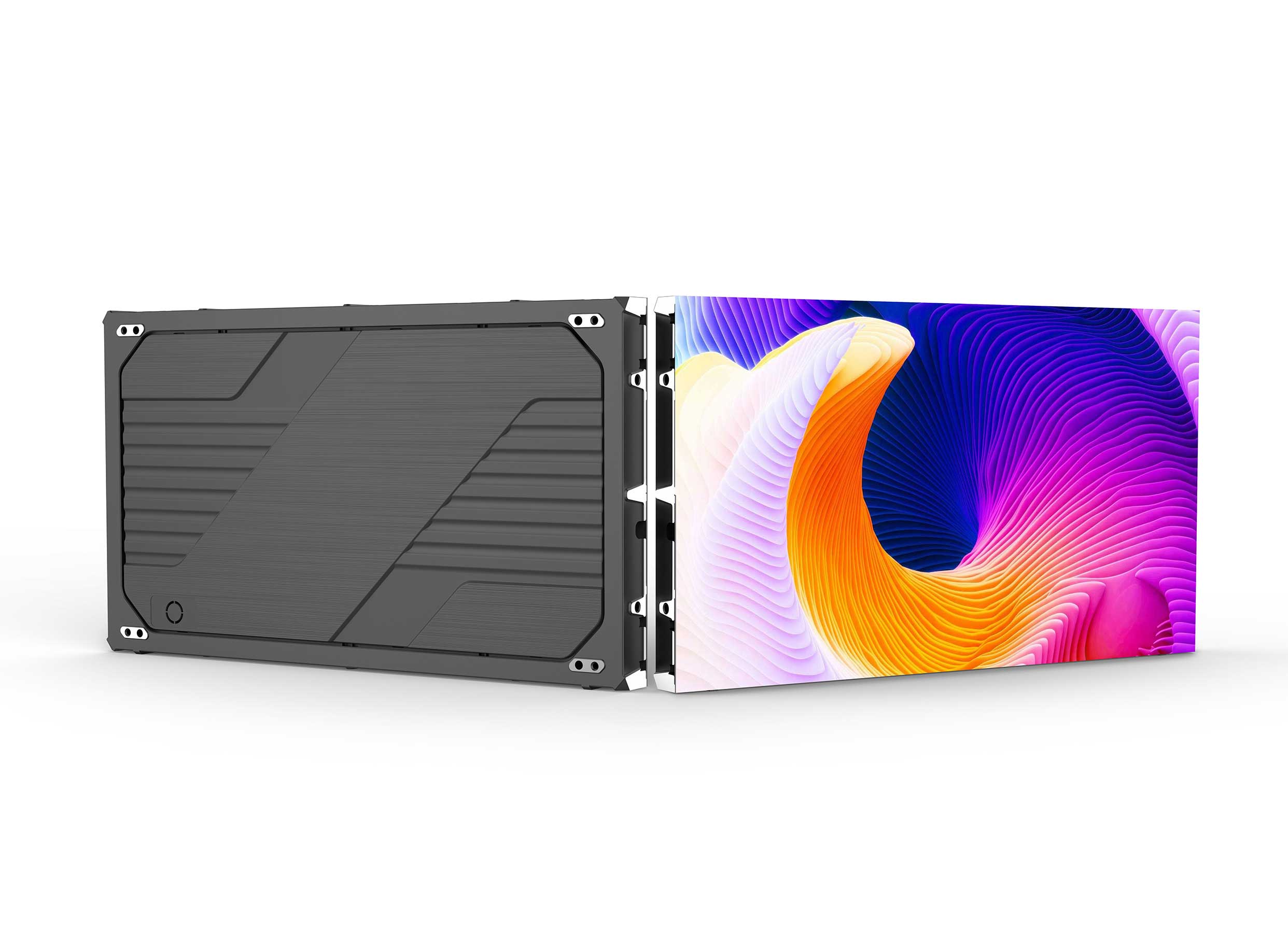

UT-COB Series
Indoor fine pitch COB LED display
Classic Dimension: 600×337.5mm
Pixel Pitch: P0.62/ P0.78/ P0.93/ P1.25/ P1.56/ P1.87mm
Filp-chip technology, 100% front access
3-in-1 intergrated design
Applications: Indoor HD Video Wall, All-in-one COB TV, COB Poster,
Folding COB TV, Showroom, Conference center, etc
